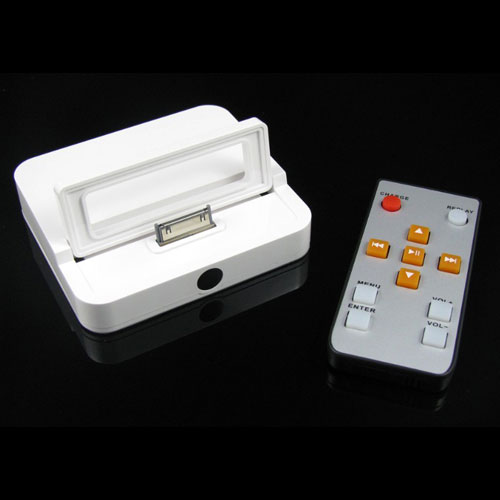

iPad, iPad 2, iPhone 4 and iPod Touch 4 HDMI Dock

Specification:

* Mirroring function --- mirroring everything from iPad2 to HD TV

* HDMI --- Transmit the HD signal from iPad/iPhone4/iPod Touch 4G to HD TV

* Remote controller --- Play/Pause, Previous/Next, Back/Confirm etc

* Audio Line Out --- Connect to Sound-Speaker

* Charging --- Connect APPLE original adaptor with this Dock, it will Charge your iPhone while playing HD Movie. Include iphone1g, 2g, 3g, 4g, ipad, ipod Touch 1g, 2g, 3g, 4g, there is a button on the top to shut on/off

* USB interface reader -- connect with digit Camera, USB keyboard, USB Speaker, USB earphone etc.

 Parameter:

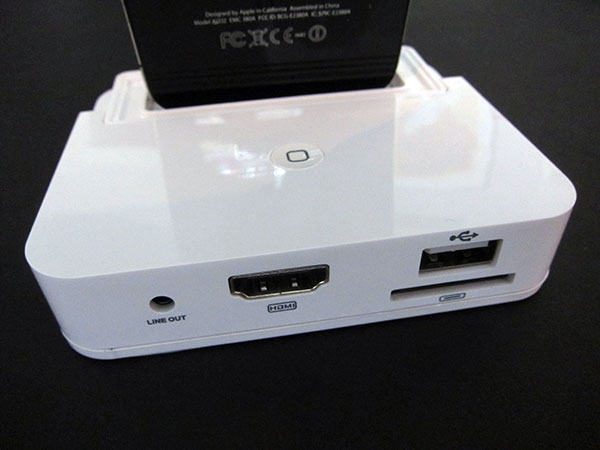

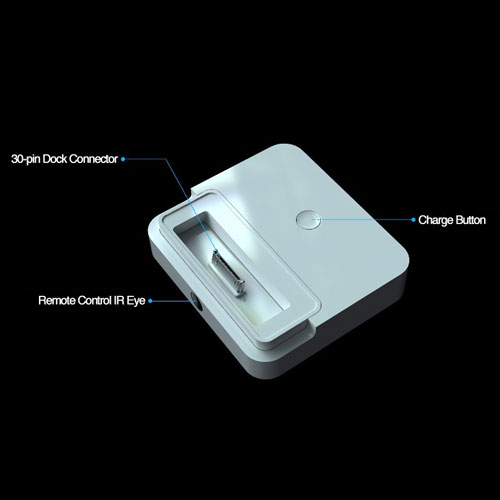

Apple 30pin source input port:  1   Video device port : 1

Apple 30pin source output port:  1

Audio Line output port:  1     USB interface input port: 1

Apple 30pin source port connector:  Apple 30 pin (male and female)

Video device port connector:  HDMI Type A 19 pin (female)

Single link range:  Max:1920 x 1200  (For Apple:1024 x 768/720p)

Vertical frequency range:  60Hz      Video band width (bps):  5.7G  link

Voltage:  3.3 V      Current:  120mA     Output:  5V    Enclosure:  Plastic
